Technical characteristics

Frame Range	H80~315	Power Range	0.55~90kW
Rated Voltage	380V	Rated Speed	3000、1500、1000、750
Efficiency Level	1級能效	Protection Degree	IP55
Cooling Mode	IC411、IC416	Insulation Class	F
Operation Mode	S1	Installation Mode	B3、B5、B35、B14、B34、V1
Wiring Mode	Y

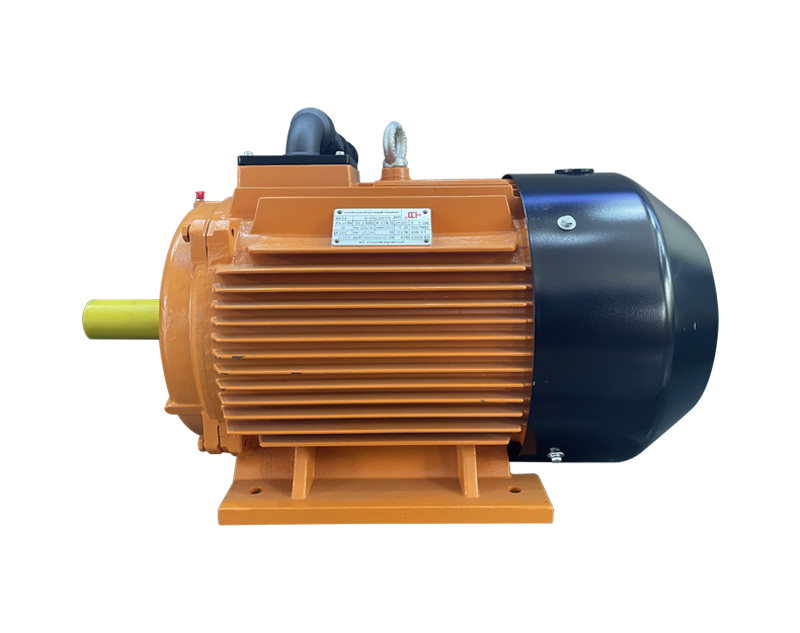

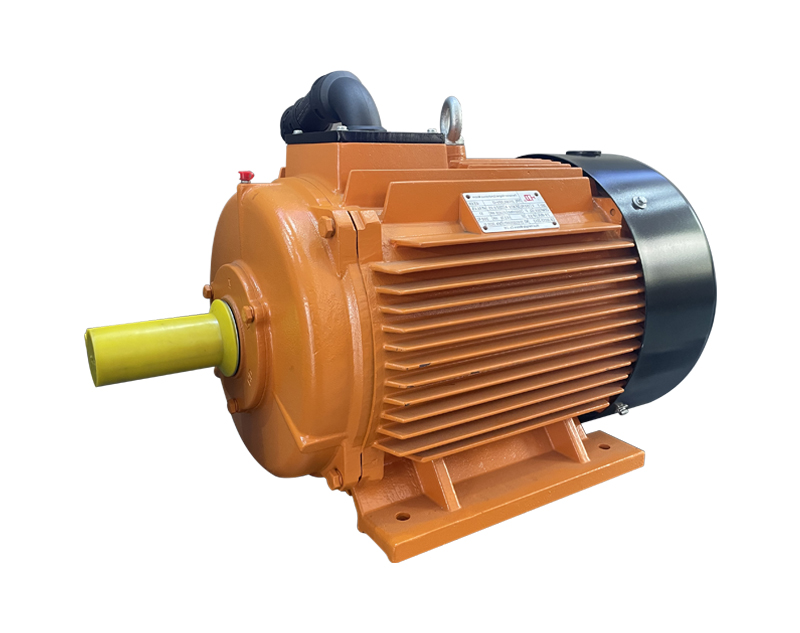

Variable frequency drive permanent magnet synchronous motor

This series of motors operate at synchronous electric speed, there is no slip between stator and rotor, and there is no rotor copper consumption and iron consumption during stable operation, which can reduce the fan and the corresponding wind friction consumption. Rare earth permanent magnet motor does not need reactive excitation current, so it can significantly improve the power factor to the limit value (1.0); It can meet the requirements of various load conditions, has obvious energy-saving effect, reliable and safe operation, low replacement cost and short investment payback period. It has been recommended by the national "energy saving project of motor system".

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Rated Power	Rated Voltage	Rated Frequency	Insulation Class	Poles	Rated Speed	Efficiency	Frame Size	Weight	Overall Dimensions(mm)
Model	kW	V	Hz	Insulation Class	Poles	r/min	η	Frame Size	kg	Long	Wide	High
XYT80M15P8-0.55	0.55	380	100	F	8	1500	85.6	80	13	300	167	245
XYT90L30P4-2.2	2.2	380	100	F	8	3000	91.8	90	20	385	190	265
XYT132M15P8-11	11	380	100	F	8	1500	93.6	132	83	560	275	365
XYT160L10P8-11	11	380	66.7	F	8	1000	94.5	160	130	700	320	440
XYT90S30P6-1.5	1.5	380	150	F	6	3000	90.9	90	17	355	190	265
XYT90S30P6-2.2	2.2	380	150	F	6	3000	91.8	90	18	355	190	265
XYT90L30P6-2.2	2.2	380	150	F	6	3000	91.8	90	19	385	190	265
XYT90L30P6-3	3	380	150	F	6	3000	92.6	90	23	385	190	265
XYT100L30P6-3	3	380	150	F	6	3000	92.6	100	26	435	215	290
XYT100L30P6-4	4	380	150	F	6	3000	93.3	100	28	435	215	290
XYT112M30P6-4	4	380	150	F	6	3000	93.3	112	34	470	240	325
XYT112M30P6-5.5	5.5	380	150	F	6	3000	94	112	36	470	240	325
XYT112M30P6-7.5	7.5	380	150	F	6	3000	94.5	112	38	470	240	325
XYT132S30P6-5.5	5.5	380	150	F	6	3000	94	132	57	510	275	365
XYT132S30P6-7.5	7.5	380	150	F	6	3000	94.5	132	62	510	275	365
XYT132S30P6-11	11	380	150	F	6	3000	95	132	74	510	275	365
XYT132M30P6-11	11	380	150	F	6	3000	95	132	77	560	275	365
XYT132M30P6-15	15	380	150	F	6	3000	95.3	132	83	560	275	365
XYT160M30P6-11	11	380	150	F	6	3000	95	160	93	670	320	440
XYT160M30P6-15	15	380	150	F	6	3000	95.3	160	102	670	320	440
XYT160M30P6-18.5	18.5	380	150	F	6	3000	95.6	160	110	670	320	440
XYT160M30P6-22	22	380	150	F	6	3000	95.9	160	110	670	320	440
XYT160L30P6-18.5	18.5	380	150	F	6	3000	95.6	160	113	700	320	440
XYT160L30P6-22	22	380	150	F	6	3000	95.9	160	113	700	320	440
XYT160L30P6-30	30	380	150	F	6	3000	96.1	160	130	700	320	440
XYT160M30P6-37	37	380	150	F	6	3000	96.3	160	155	670	320	440
XYT80M30P8-0.55	0.55	380	200	F	8	3000	87.3	80	12	300	167	245
XYT80M30P8-0.75	0.75	380	200	F	8	3000	88.6	80	12	300	167	245
XYT80M30P8-1.1	1.1	380	200	F	8	3000	89.8	80	17	300	167	245
XYT80M30P8-1.5	1.5	380	200	F	8	3000	90.9	80	17	300	167	245
XYT80M30P8-2.2	2.2	380	200	F	8	3000	91.8	80	18	300	167	245
XYT80M30P8-3	3	380	200	F	8	3000	92.6	80	18	300	167	245
XYT90S30P8-1.5	1.5	380	200	F	8	3000	90.9	90	17	355	190	265
XYT90S30P8-2.2	2.2	380	200	F	8	3000	91.8	90	19	355	190	265
XYT90L30P8-2.2	2.2	380	200	F	8	3000	91.8	90	19	385	190	265
XYT90L30P8-3	3	380	200	F	8	3000	92.6	90	23	385	190	265
XYT100L30P8-3	3	380	200	F	8	3000	92.6	100	26	435	215	290
XYT100L30P8-4	4	380	200	F	8	3000	93.3	100	28	435	215	290
XYT112M30P8-4	4	380	200	F	8	3000	93.3	112	34	470	240	325
XYT112M30P8-5.5	5.5	380	200	F	8	3000	94	112	36	470	240	325
XYT112M30P8-7.5	7.5	380	200	F	8	3000	94.5	112	38	470	240	325
XYT132S30P8-5.5	5.5	380	200	F	8	3000	94	132	57	510	275	365
XYT132S30P8-7.5	7.5	380	200	F	8	3000	94.5	132	62	510	275	365
XYT132S30P8-11	11	380	200	F	8	3000	95	132	77	510	275	365
XYT132M30P8-11	11	380	200	F	8	3000	95	132	79	560	275	365
XYT132M30P8-15	15	380	200	F	8	3000	95.3	132	83	560	275	365
XYT160M30P8-11	11	380	200	F	8	3000	95	160	93	670	320	440
XYT160M30P8-15	15	380	200	F	8	3000	95.3	160	102	670	320	440
XYT160M30P8-18.5	18.5	380	200	F	8	3000	95.6	160	113	670	320	440
XYT160M30P8-22	22	380	200	F	8	3000	95.9	160	113	670	320	440
XYT160L30P8-18.5	18.5	380	200	F	8	3000	95.6	160	118	700	320	440
XYT160L30P8-22	22	380	200	F	8	3000	95.9	160	123	700	320	440
XYT160L30P8-30	30	380	200	F	8	3000	96.1	160	130	700	320	440
XYT160M30P8-37	37	380	200	F	8	3000	96.3	160	155	670	320	440
XYT80M30P4-0.55	0.55	380	100	F	8	3000	87.3	80	14	300	167	245
XYT80M30P4-0.75	0.75	380	100	F	8	3000	88.6	80	15	300	167	245
XYT80M30P4-1.1	1.1	380	100	F	8	3000	89.8	80	17	300	167	245
XYT80M30P4-1.5	1.5	380	100	F	8	3000	90.9	80	17	300	167	245
XYT80M30P4-2.2	2.2	380	100	F	8	3000	91.8	80	18	300	167	245
XYT80M30P4-3	3	380	100	F	8	3000	92.6	80	19	300	167	245
XYT90S30P4-1.5	1.5	380	100	F	8	3000	90.9	90	17	355	190	265
XYT90S30P4-2.2	2.2	380	100	F	8	3000	91.8	90	19	355	190	265
XYT90L30P4-3	3	380	100	F	8	3000	92.6	90	23	385	190	265
XYT100L30P4-3	3	380	100	F	8	3000	92.6	100	26	435	215	290
XYT100L30P4-4	4	380	100	F	8	3000	93.3	100	28	435	215	290
XYT112M30P4-4	4	380	100	F	8	3000	93.3	112	34	470	240	325
XYT112M30P4-5.5	5.5	380	100	F	8	3000	94	112	36	470	240	325
XYT112M30P4-7.5	7.5	380	100	F	8	3000	94.5	112	38	470	240	325
XYT132S30P4-5.5	5.5	380	100	F	8	3000	94	132	57	510	275	365
XYT132S30P4-7.5	7.5	380	100	F	8	3000	94.5	132	62	510	275	365
XYT132M30P4-11	11	380	100	F	8	3000	95	132	77	560	275	365
XYT132M30P4-15	15	380	100	F	8	3000	95.3	132	83	560	275	365
XYT160M30P4-11	11	380	100	F	8	3000	95	160	93	670	320	440
XYT160M30P4-15	15	380	100	F	8	3000	95.3	160	102	670	320	440
XYT160L30P4-18.5	18.5	380	100	F	8	3000	95.6	160	113	700	320	440
XYT160L30P4-22	22	380	100	F	8	3000	95.9	160	113	700	320	440
XYT80M15P4-0.75	0.75	380	50	F	4	1500	85.6	80	17	300	167	245
XYT80M15P4-1.1	1.1	380	50	F	4	1500	87.4	80	18	300	167	245
XYT80M15P4-1.5	1.5	380	50	F	4	1500	88.1	80	21	300	167	245
XYT90S15P4-1.1	1.1	380	50	F	4	1500	87.4	90	19	355	190	265
XYT80M15P8-0.75	0.75	380	100	F	8	1500	85.6	80	14	300	167	245
XYT80M15P8-1.1	1.1	380	100	F	8	1500	87.4	80	17	300	167	245
XYT80M15P8-1.5	1.5	380	100	F	8	1500	88.1	80	19	300	167	245
XYT90S15P8-0.75	0.75	380	100	F	8	1500	85.6	90	19	355	190	265
XYT90S15P8-1.1	1.1	380	100	F	8	1500	87.4	90	18	355	190	265
XYT90L15P8-1.1	1.1	380	100	F	8	1500	87.4	90	19	385	190	265
XYT90L15P8-1.5	1.5	380	100	F	8	1500	88.1	90	23	385	190	265
XYT90L15P8-2.2	2.2	380	100	F	8	1500	89.7	90	25	385	190	265
XYT90L15P8-3	3	380	100	F	8	1500	90.3	90	27	385	190	265
XYT100L15P8-2.2	2.2	380	100	F	8	1500	89.7	100	29	435	215	290
XYT100L15P8-3	3	380	100	F	8	1500	90.3	100	32	435	215	290
XYT100L15P8-4	4	380	100	F	8	1500	90.9	100	34	435	215	290
XYT112M15P8-4	4	380	100	F	8	1500	90.9	112	45	470	240	325
XYT112M15P8-5.5	5.5	380	100	F	8	1500	92.1	112	50	470	240	325
XYT132S15P8-5.5	5.5	380	100	F	8	1500	92.1	132	59	510	275	365
XYT132M15P8-7.5	7.5	380	100	F	8	1500	92.6	132	73	560	275	365
XYT132M15P8-15	15	380	100	F	8	1500	94	132	93	560	275	365
XYT160M15P8-11	11	380	100	F	8	1500	93.6	160	104	670	320	440
XYT160M15P8-15	15	380	100	F	8	1500	94	160	115	670	320	440
XYT160L15P8-15	15	380	100	F	8	1500	94	160	120	700	320	440
XYT160L15P8-18.5	18.5	380	100	F	8	1500	94.3	160	140	700	320	440
XYT160L15P8-22	22	380	100	F	8	1500	94.7	160	151	700	320	440
XYT90S15P6-0.75	0.75	380	75	F	6	1500	85.6	90	19	355	190	265
XYT90S15P6-1.1	1.1	380	75	F	6	1500	87.4	90	18	355	190	265
XYT90L15P6-1.1	1.1	380	75	F	6	1500	87.4	90	19	385	190	265
XYT90L15P6-1.5	1.5	380	75	F	6	1500	88.1	90	23	385	190	265
XYT90L15P6-2.2	2.2	380	75	F	6	1500	89.7	90	25	385	190	265
XYT90L15P6-3	3	380	75	F	6	1500	90.3	90	27	385	190	265
XYT100L15P6-2.2	2.2	380	75	F	6	1500	89.7	100	29	435	215	290
XYT100L15P6-3	3	380	75	F	6	1500	90.3	100	32	435	215	290
XYT100L15P6-4	4	380	75	F	6	1500	90.9	100	34	435	215	290
XYT112M15P6-4	4	380	75	F	6	1500	90.9	112	45	470	240	325
XYT112M15P6-5.5	5.5	380	75	F	6	1500	92.1	112	50	470	240	325
XYT132S15P6-5.5	5.5	380	75	F	6	1500	92.1	132	59	510	275	365
XYT132M15P6-7.5	7.5	380	75	F	6	1500	92.6	132	73	560	275	365
XYT132M15P6-11	11	380	75	F	6	1500	93.6	132	83	560	275	365
XYT132M15P6-15	15	380	75	F	6	1500	94	132	93	560	275	365
XYT160M15P6-11	11	380	75	F	6	1500	93.6	160	104	670	320	440
XYT160M15P6-15	15	380	75	F	6	1500	94	160	115	670	320	440
XYT160L15P6-15	15	380	75	F	6	1500	94	160	120	700	320	440
XYT160L15P6-18.5	18.5	380	75	F	6	1500	94.3	160	140	700	320	440
XYT160L15P6-22	22	380	75	F	6	1500	94.7	160	151	700	320	440
XYT80M10P8-0.55	0.55	380	66.7	F	8	1000	85.9	80	17	300	167	245
XYT80M10P8-0.75	0.75	380	66.7	F	8	1000	87.4	80	19	300	167	245
XYT80M10P8-1.1	1.1	380	66.7	F	8	1000	88.7	80	21	300	167	245
XYT80M10P8-1.5	1.5	380	66.7	F	8	1000	89.9	80	23	300	167	245
XYT90S10P8-0.75	0.75	380	66.7	F	8	1000	87.4	90	19	355	190	265
XYT90L10P8-1.1	1.1	380	66.7	F	8	1000	88.7	90	24	385	190	265
XYT90L10P8-1.5	1.5	380	66.7	F	8	1000	89.9	90	25	385	190	265
XYT100L10P8-1.5	1.5	380	66.7	F	8	1000	89.9	100	29	435	215	290
XYT100L10P8-2.2	2.2	380	66.7	F	8	1000	90.9	100	34	435	215	290
XYT112M10P8-2.2	2.2	380	66.7	F	8	1000	90.9	112	38	470	240	325
XYT112M10P8-3	3	380	66.7	F	8	1000	91.8	112	44	470	240	325
XYT112M10P8-4	4	380	66.7	F	8	1000	92.7	112	53	470	240	325
XYT112M10P8-5.5	5.5	380	66.7	F	8	1000	93.4	112	61	470	240	325
XYT132S10P8-3	3	380	66.7	F	8	1000	91.8	132	59	510	275	365
XYT132M10P8-4	4	380	66.7	F	8	1000	92.7	132	66	560	275	365
XYT132M10P8-5.5	5.5	380	66.7	F	8	1000	93.4	132	76	560	275	365
XYT132M10P8-7.5	7.5	380	66.7	F	8	1000	94	132	83	560	275	365
XYT160M10P8-7.5	7.5	380	66.7	F	8	1000	94	160	104	670	320	440
XYT160L10P8-15	15	380	66.7	F	8	1000	94.9	160	147	700	320	440
XYT90S10P6-0.75	0.75	380	50	F	6	1000	87.4	90	19	355	190	265
XYT90L10P6-1.1	1.1	380	50	F	6	1000	88.7	90	24	385	190	265
XYT90L10P6-1.5	1.5	380	50	F	6	1000	89.9	90	25	385	190	265
XYT100L10P6-1.5	1.5	380	50	F	6	1000	89.9	100	29	435	215	290
XYT100L10P6-2.2	2.2	380	50	F	6	1000	90.9	100	34	435	215	290
XYT112M10P6-2.2	2.2	380	50	F	6	1000	90.9	112	38	470	240	325
XYT112M10P6-3	3	380	50	F	6	1000	91.8	112	44	470	240	325
XYT112M10P6-4	4	380	50	F	6	1000	92.7	112	53	470	240	325
XYT112M10P6-5.5	5.5	380	50	F	6	1000	93.4	112	61	470	240	325
XYT132S10P6-3	3	380	50	F	6	1000	91.8	132	59	510	275	365
XYT132M10P6-4	4	380	50	F	6	1000	92.7	132	66	560	275	365
XYT132M10P6-5.5	5.5	380	50	F	6	1000	93.4	132	76	560	275	365
XYT132M10P6-7.5	7.5	380	50	F	6	1000	94	132	83	560	275	365
XYT160M10P6-7.5	7.5	380	50	F	6	1000	94	160	104	670	320	440
XYT160L10P6-11	11	380	50	F	6	1000	94.5	160	130	700	320	440
XYT160L10P6-15	15	380	50	F	6	1000	94.9	160	147	700	320	440
XYT80M15P4-0.55	0.55	380	50	F	4	1500	85.6	80	15	300	167	245
XYT112M9.0P8-1.5	1.5	380	60	F	8	900	84.5	112	45	470	240	325
XYT180M30P6-22	22	380	150	F	6	3000	95.9	180	144	740	380	470
XYT200L10P8-22	22	380	66.7	F	8	1000	95.6	200	227	780	410	525
XYT280M15P8-90	90	380	100	F	8	1500	96.2	280	575	1035	580	698
XYT315M10P8-90	90	380	66.7	F	8	1000	96.5	315	894	1340	645	885
XYT180L30P6-25	25	380	150	F	6	3000	96.1	180	153	780	380	470
XYT180L30P6-30	30	380	150	F	6	3000	96.1	180	155	780	380	470
XYT180M30P6-37	37	380	150	F	6	3000	96.3	180	160	740	380	470
XYT180M30P6-45	45	380	150	F	6	3000	96.4	180	175	740	380	470
XYT180M30P6-55	55	380	150	F	6	3000	96.5	180	190	740	380	470
XYT180L30P6-37	37	380	150	F	6	3000	96.3	180	171	780	380	470
XYT180L30P6-45	45	380	150	F	6	3000	96.4	180	185	780	380	470
XYT180L30P6-55	55	380	150	F	6	3000	96.5	180	195	780	380	470
XYT200L30P6-30	30	380	150	F	6	3000	96.1	200	197	780	410	525
XYT200L30P6-37	37	380	150	F	6	3000	96.3	200	197	780	410	525
XYT200L30P6-45	45	380	150	F	6	3000	96.4	200	217	780	410	525
XYT200L30P6-55	55	380	150	F	6	3000	96.5	200	232	780	410	525
XYT200L30P6-75	75	380	150	F	6	3000	96.6	200	255	780	410	525
XYT225S30P6-45	45	380	150	F	6	3000	96.4	225	228	820	470	580
XYT225S30P6-55	55	380	150	F	6	3000	96.5	225	240	820	470	580
XYT225S30P6-75	75	380	150	F	6	3000	96.6	225	260	820	470	580
XYT225M30P6-45	45	380	150	F	6	3000	96.4	225	236	845	470	580
XYT225M30P6-55	55	380	150	F	6	3000	96.5	225	245	845	470	580
XYT225M30P6-75	75	380	150	F	6	3000	96.6	225	261	845	470	580
XYT225M30P6-90	75	380	150	F	6	3000	96.6	225	282	845	470	580
XYT250M30P6-55	55	380	150	F	6	3000	96.5	250	287	915	490	635
XYT250M30P6-75	75	380	150	F	6	3000	96.6	250	307	915	490	635
XYT250M30P6-90	90	380	150	F	6	3000	96.7	250	347	915	490	635
XYT280S30P6-75	75	380	150	F	6	3000	96.6	280	397	985	580	698
XYT280M30P6-90	90	380	150	F	6	3000	96.7	280	397	1035	580	698
XYT180M30P8-22	22	380	200	F	8	3000	95.9	180	144	740	380	470
XYT180L30P8-25	25	380	200	F	8	3000	96	180	153	780	380	470
XYT180L30P8-30	30	380	200	F	8	3000	96.1	180	155	780	380	470
XYT180M30P8-37	37	380	200	F	8	3000	96.3	180	160	740	380	470
XYT180M30P8-45	45	380	200	F	8	3000	96.4	180	175	740	380	470
XYT180M30P8-55	55	380	200	F	8	3000	96.5	180	190	740	380	470
XYT180L30P8-37	37	380	200	F	8	3000	96.3	180	160	780	380	470
XYT180L30P8-45	45	380	200	F	8	3000	96.4	180	185	780	380	470
XYT180L30P8-55	55	380	200	F	8	3000	96.5	180	195	780	380	470
XYT200L30P8-30	30	380	200	F	8	3000	96.1	200	197	780	410	525
XYT200L30P8-37	37	380	200	F	8	3000	96.3	200	197	780	410	525
XYT200L30P8-45	45	380	200	F	8	3000	96.4	200	217	780	410	525
XYT200L30P8-55	55	380	200	F	8	3000	96.5	200	232	780	410	525
XYT200L30P8-75	75	380	200	F	8	3000	96.6	200	255	780	410	525
XYT225S30P8-45	45	380	200	F	8	3000	96.4	225	228	820	470	580
XYT225S30P8-55	55	380	200	F	8	3000	96.5	225	240	820	470	580
XYT225S30P8-75	75	380	200	F	8	3000	96.6	225	260	820	470	580
XYT225M30P8-45	45	380	200	F	8	3000	96.4	225	236	845	470	580
XYT225M30P8-55	55	380	200	F	8	3000	96.5	225	245	845	470	580
XYT225M30P8-75	75	380	200	F	8	3000	96.6	225	261	845	470	580
XYT225M30P8-90	75	380	200	F	8	3000	96.6	225	282	845	470	580
XYT250M30P8-55	55	380	200	F	8	3000	96.5	250	287	915	490	635
XYT250M30P8-75	75	380	200	F	8	3000	96.6	250	307	915	490	635
XYT250M30P8-90	90	380	200	F	8	3000	96.7	250	347	915	490	635
XYT280S30P8-75	75	380	200	F	8	3000	96.6	280	397	985	580	698
XYT280M30P8-90	90	380	200	F	8	3000	96.7	280	397	1035	580	698
XYT180M30P4-22	22	380	100	F	8	3000	95.9	180	144	740	380	470
XYT180L30P4-30	30	380	100	F	8	3000	96.1	180	155	780	380	470
XYT180L30P4-37	37	380	100	F	8	3000	96.3	180	160	780	380	470
XYT180L30P4-45	45	380	100	F	8	3000	96.4	180	185	780	380	470
XYT180M15P8-15	15	380	100	F	8	1500	94	180	150	740	380	470
XYT180M15P8-18.5	18.5	380	100	F	8	1500	94.3	180	165	740	380	470
XYT180M15P8-22	22	380	100	F	8	1500	94.7	180	170	740	380	470
XYT180L15P8-22	22	380	100	F	8	1500	94.7	180	170	780	380	470
XYT180M15P8S-15	15	380	100	F	8	1500	94	180	130	740	380	470
XYT180M15P8S-18.5	18.5	380	100	F	8	1500	94.3	180	155	740	380	470
XYT180L15P8S-22	22	380	100	F	8	1500	94.7	180	171	780	380	470
XYT180L15P8-25	25	380	100	F	8	1500	94.8	180	191	780	380	470
XYT180L15P8-30	30	380	100	F	8	1500	95	180	200	780	380	470
XYT180L15P8-37	37	380	100	F	8	1500	95.3	180	228	780	380	470
XYT200L15P8-30	30	380	100	F	8	1500	95	200	211	780	410	525
XYT200L15P8-37	37	380	100	F	8	1500	95.3	200	230	780	410	525
XYT200L15P8-45	45	380	100	F	8	1500	95.6	200	255	780	410	525
XYT225S15P8S-37	37	380	100	F	8	1500	95.3	225	260	820	470	580
XYT225M15P8S-45	45	380	100	F	8	1500	95.6	225	304	845	470	580
XYT225S15P8-37	37	380	100	F	8	1500	95.3	225	260	820	470	580
XYT225S15P8-45	45	380	100	F	8	1500	95.6	225	304	820	470	580
XYT225M15P8-45	45	380	100	F	8	1500	95.6	225	312	845	470	580
XYT225M15P8-55	55	380	100	F	8	1500	95.8	225	324	845	470	580
XYT225M15P8-65	65	380	100	F	8	1500	95.9	225	341	845	470	580
XYT225M15P8-75	75	380	100	F	8	1500	96	225	371	845	470	580
XYT250M15P8-55	55	380	100	F	8	1500	95.8	250	406	915	490	635
XYT250M15P8-75	75	380	100	F	8	1500	96	250	416	915	490	635
XYT250M15P8-90	90	380	100	F	8	1500	96.2	250	441	915	490	635
XYT280S15P8-75	75	380	100	F	8	1500	96	280	500	985	580	698
XYT180M15P6-15	15	380	75	F	6	1500	94	180	150	740	380	470
XYT180M15P6-18.5	18.5	380	75	F	6	1500	94.3	180	165	740	380	470
XYT180M15P6-22	22	380	75	F	6	1500	94.7	180	170	740	380	470
XYT180L15P6-22	22	380	75	F	6	1500	94.7	180	170	780	380	470
XYT180L15P6-25	25	380	75	F	6	1500	94.8	180	191	780	380	470
XYT180L15P6-30	30	380	75	F	6	1500	95	180	200	780	380	470
XYT180L15P6-37	37	380	75	F	6	1500	95.3	180	228	780	380	470
XYT200L15P6-30	30	380	75	F	6	1500	95	200	211	780	410	525
XYT200L15P6-37	37	380	75	F	6	1500	95.3	200	230	780	410	525
XYT200L15P6-45	45	380	75	F	6	1500	95.6	200	255	780	410	525
XYT225S15P6-37	37	380	75	F	6	1500	95.3	225	260	820	470	580
XYT225S15P6-45	45	380	75	F	6	1500	95.6	225	304	820	470	580
XYT225M15P6-45	45	380	75	F	6	1500	95.6	225	260	845	470	580
XYT225M15P6-55	55	380	75	F	6	1500	95.8	225	304	845	470	580
XYT225M15P6-65	65	380	75	F	6	1500	95.9	225	341	845	470	580
XYT225M15P6-75	75	380	75	F	6	1500	96	225	371	845	470	580
XYT250M15P6-55	55	380	75	F	6	1500	95.8	250	341	915	490	635
XYT250M15P6-75	75	380	75	F	6	1500	96	250	416	915	490	635
XYT250M15P6-90	90	380	75	F	6	1500	96.2	250	441	915	490	635
XYT280S15P6-75	75	380	75	F	6	1500	96	280	500	985	580	698
XYT280M15P6-90	90	380	75	F	6	1500	96.2	280	575	1035	580	698
XYT180L10P8-15	15	380	66.7	F	8	1000	94.9	180	170	780	380	470
XYT180L10P8-18.5	18.5	380	66.7	F	8	1000	95.3	180	186	780	380	470
XYT180L10P8-22	22	380	66.7	F	8	1000	95.6	180	196	780	380	470
XYT180L10P8-30	30	380	66.7	F	8	1000	95.8	180	211	780	380	470
XYT200L10P8-18.5	18.5	380	66.7	F	8	1000	95.3	200	311	780	410	525
XYT200L10P8-30	30	380	66.7	F	8	1000	95.8	200	244	780	410	525
XYT225M10P8-30	30	380	66.7	F	8	1000	95.8	225	308	845	470	580
XYT225M10P8-37	37	380	66.7	F	8	1000	96	225	324	845	470	580
XYT250M10P8-37	37	380	66.7	F	8	1000	96	250	377	915	490	635
XYT250M10P8-45	45	380	66.7	F	8	1000	96.2	250	406	915	490	635
XYT250M10P8-55	55	380	66.7	F	8	1000	96.3	250	431	915	490	635
XYT280S10P8-45	45	380	66.7	F	8	1000	96.2	280	520	985	580	698
XYT280S10P8-55	55	380	66.7	F	8	1000	96.3	280	557	985	580	698
XYT280M10P8-55	55	380	66.7	F	8	1000	96.3	280	587	1035	580	698
XYT280M10P8-75	75	380	66.7	F	8	1000	96.4	280	606	1035	580	698
XYT280M10P8-90	90	380	66.7	F	8	1000	96.5	280	646	1035	580	698
XYT315S10P8-75	75	380	66.7	F	8	1000	96.4	315	829	1230	645	885
XYT315S10P8-90	90	380	66.7	F	8	1000	96.5	315	854	1230	645	885
XYT180L10P6-15	15	380	50	F	6	1000	94.9	180	170	780	380	470
XYT180L10P6-18.5	18.5	380	50	F	6	1000	95.3	180	186	780	380	470
XYT180L10P6-22	22	380	50	F	6	1000	95.6	180	196	780	380	470
XYT180L10P6-30	30	380	50	F	6	1000	95.8	180	211	780	380	470
XYT200L10P6-18.5	18.5	380	50	F	6	1000	95.3	200	311	780	410	525
XYT200L10P6-22	22	380	50	F	6	1000	95.6	200	227	780	410	525
XYT200L10P6-30	30	380	50	F	6	1000	95.8	200	244	780	410	525
XYT225M10P6-30	30	380	50	F	6	1000	95.8	225	308	845	470	580
XYT225M10P6-37	37	380	50	F	6	1000	96	225	324	845	470	580
XYT250M10P6-37	37	380	50	F	6	1000	96	250	377	915	490	635
XYT250M10P6-45	45	380	50	F	6	1000	96.2	250	406	915	490	635
XYT250M10P6-55	55	380	50	F	6	1000	96.3	250	431	915	490	635
XYT280S10P6-45	45	380	50	F	6	1000	96.2	280	520	985	580	698
XYT280M10P6-55	55	380	50	F	6	1000	96.3	280	587	1035	580	698
XYT280M10P6-75	75	380	50	F	6	1000	96.4	280	606	1035	580	698
XYT280M10P6-90	90	380	50	F	6	1000	96.5	280	646	1035	580	698
XYT315S10P6-75	75	380	50	F	6	1000	96.4	315	928	1230	645	885
XYT315S10P6-90	90	380	50	F	6	1000	96.5	315	854	1230	645	885
XYT315M10P6-90	90	380	50	F	6	1000	96.5	315	894	1340	645	885
XYT250M10P12-45	45	380	100	F	12	1000	96.2	250	406	915	490	635
XYT250M10P12-55	55	380	100	F	12	1000	96.3	250	431	915	490	635
XYT250M10P12-75	75	380	100	F	12	1000	96.4	250	505	915	490	635
XYT250M10P12-90	90	380	100	F	12	1000	96.5	250	548	915	490	635
XYT280S10P6-55	55	380	50	F	6	1000	96.3	280	557	985	580	698
XYT225M19.5P4-55	55	380	65	F	4	1950	95.8	225	345	845	470	580

Contact Information

4000-999-510
