20211026/d88ecf77509d031eed228c61d5d96507.jpg

Technical characteristics

Frame Range	H180/225	Power Range	15~55kW
Rated Voltage	380V（Special voltage customization）	Rated Frequency	50Hz（Special frequency customization）
Poles	4	Protection Degree	IP55
Cooling Mode	IC411	Insulation Class	F
Operation Mode	S1	Installation Mode	B3、B5、B35
Wiring Mode	Y/?

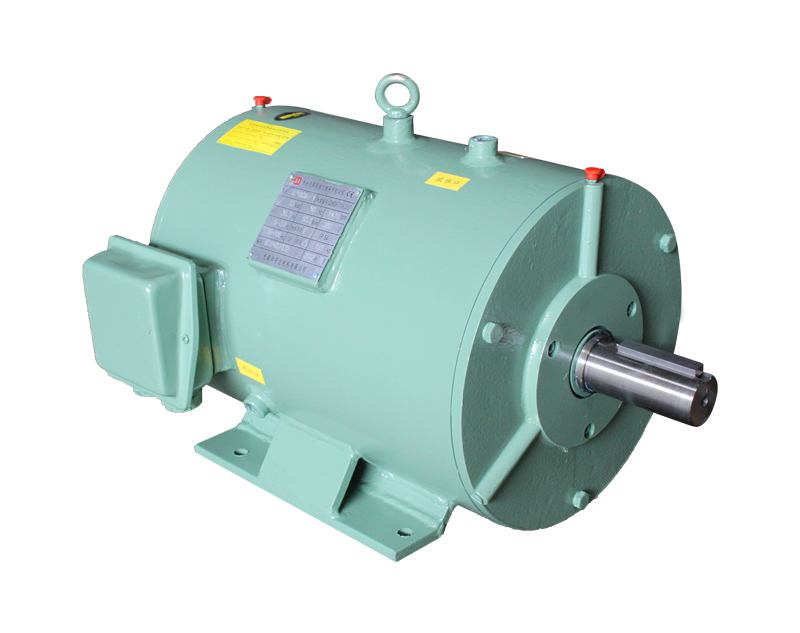

Water cooled motor

This series of motors are fully enclosed water-cooled squirrel cage three-phase asynchronous motors. Due to circulating water cooling instead of fan cooling, compared with motors of the same specification, they have the characteristics of high efficiency, low temperature rise, strong anti fiber blockage ability, low noise, safety and reliability. It is applicable to various textile and printing and dyeing machinery such as cotton, wool, hemp, silk and chemical fiber. It can work for a long time in the environment with much dust, short fiber and high temperature and humidity.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Special water-cooled two speed motor for spinning frame

Model	Power	Current	Speed	Noise	Insulation Class	Degree of protection	Connection	Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque

	kW	A	r/min	dB				Ist/IN	Tst/TN	TM/TN
FSLD180M1-6/4	7/15	17.1/29.2	960/1440	80	F	IP54	3Y/4Y	7/6	1.1/1.7	2.2/1.7
FSLD180M2-6/4	9/17	21.6/33.3						7/6	1.1/1.7
FSLD180L1-6/4	11/18.5	26.1/36.2						7/6	1.1/1.7
FSLD180L2-6/4	11/22	26.1/42.1						7/6	1.1/1.7

Special water cooling frequency conversion speed regulating three-phase asynchronous motor for spinning frame

Model	Power	Current	Speed	Rated Torque	Power Factor	Efficiency	Constant Torque	Constant Power	Insulation Class	Degree of protection	Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque
	Power	Current	Speed	Rated Torque	Power Factor	Efficiency	Constant Torque	Constant Power			Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque
	kW	A	r/min	N·m	cosΦ	η	Hz	Hz			Ist/IN	Tst/TN	TM/TN
FE2SP180M1-4	15	30	1460	95.5	0.84	90.6	5~50	50~100	F	IP55	7.5	2	2.3
FE2SP180M2-4	17	33	1470	108.2	0.85	91.0	5~50	50~100	F	IP55	7.6	2	2.3
FE2SP180L1-4	18.5	36	1470	117.8	0.85	91.2	5~50	50~100	F	IP55	7.6	2	2.3
FE2SP180L2-4	22	42	1470	140.1	0.86	91.6	5~50	50~100	F	IP55	7.7	2.1	2.3
FE2SP225S-4	37	71	1475	235.5	0.86	92.7	5~50	50~100	F	IP55	7.3	2.1	2.3
FE2SP225M-4	45	85	1475	286.5	0.86	93.1	5~50	50~100	F	IP55	7.3	2.2	2.3
FE2SP225M2-4	55	104	1475	350.1	0.86	93.5	5~50	50~100	F	IP55	7.3	2.2	2.3

Water cooled permanent magnet variable frequency speed regulating three-phase synchronous motor (FSL type)

Model	Power	Current	Speed	Frequency	Power Factor	Efficiency	Insulation Class	Degree of protection	Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque
	Power	Current	Speed	Frequency	Power Factor	Efficiency			Locked Torque / Rated Current	Locked Torque / Rated Torque	Max. Torque / Rated Torque
	kW	A	r/min	Hz	cosΦ	η			Ist/IN	Tst/TN	TM/TN
XYT-180M1-4F	15	25	1500	50	0.97	94.0	F	IP55	6.8	2.3	2.3
XYT-180M2-4F	18.5	30.7	1500	50	0.97	94.3	F	IP55	7.1	2.3	2.3
XYT-180L1-4F	22	36.4	1500	50	0.97	94.7	F	IP55	6.4	2.3	2.3
XYT-180L3-4F	30	49.5	1500	50	0.97	95.0	F	IP55	7.6	2.3	2.3
XYT-225S-4F	37	60.8	1500	50	0.97	95.3	F	IP55	6.8	2.3	2.3
XYT-225M-4F	45	73.7	1500	50	0.97	95.6	F	IP55	7.1	2.3	2.3
XYT-225M2-4F	55	89.9	1500	50	0.97	95.8	F	IP55	6.4	2.3	2.3
